Pixel Qi True Sunlight-Readable Displays
Solar Technologies is proud to be an authorized distributor of Pixel Qi true sunlight-readable displays. (Qi, pronounced “chee”, is the circulating life energy that in Asian philosophy is thought to be inherent in all things.) Pixel Qi's patented technology allows readability in full sunlight, while significantly lowering power consumption.
With Pixel Qi's patented transflective technology, the difference is dramatic. Since Pixel Qi's innovative solution doesn’t rely on brighter backlights to achieve readability, power demands are not increased. In fact, Pixel Qi monitors are extremely energy-efficient.
Pixel Qi's innovation has earned them coveted awards and recognition within the display industry, including the 2010 IEEE ACE Award for the “Emerging Technology with the Greatest Promise for Financial Success”, as well as the 2010 SID “Display of the Year” Silver Award.
Pixel Qi sunlight-readable displays offer many benefits, including:
Pixel Qi's answers to your sunlight readable requirements:
- A patented approach yields incredible results (please view the demonstration video below), while achieving remarkable energy-efficiency
- Options include black and white sunlight-readable displays, color displays and video-capable displays
- Versatile Pixel Qi panels are readable in any light, whether full sunlight or darkened environments
- Touch screen capability
Solar Technologies offers the following Pixel Qi full sunlight-readable displays standard. Please call us if you would like us to source a custom solution for you:

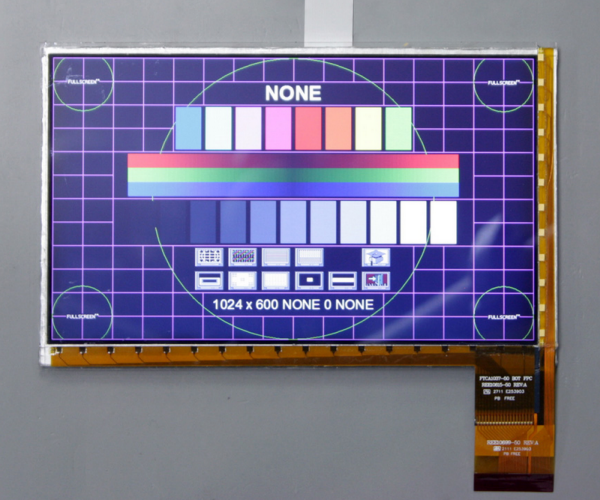

7" Products |
PQ070WS01 |
PQ070WS02 |
SPQ070WS01PC01 |
SPQ070WS01PC02 |
|
 |
|
 |
|
||
| Diagonal | 7" | 7" | 7" | 7" | |
| LCM Interface<br />System | LVDS | LVDS | LVDS | LVDS | |
| Luminance cd/m2 | 220 | 430 | 195 | 195 | |
| Display Resolution | 1024x600xRGB 3072x600 (bcklt off) |
1024x600xRGB 3072x600 (bcklt off) |
1024x600xRGB 3072x600 (bcklt off) |
1024x600xRGB 3072x600 (bcklt off) |
|
| Mode | Transflective | Transflective | Transflective | Transflective | |
| Active Area (mm) | 153.6 x 90.0 | 153.6 x 90.0 | 153.6 x 90.0 | 153.6 x 90.0 | |
| Brightness (nits) |
Darkroom | 220 | 430 | 195 | 195 |
| Office Lighting |
270 | 530 | TBD | TBD | |
| Outside, Sunlight | >1000 | >1000 | TBD | TBD | |
| Color Saturation | 45% | 43% | TBD | TBD | |
| Color in Sunlight? | Yes | Yes | Yes | Yes | |
| Hemispheric<br/>Reflectance | 20% | 20% | TBD | TBD | |
| Diffuse Reflectance | 40% | 40% | TBD | TBD | |
| Backlight Full Power (Watts) |
1.3 | 1.7 | 1.3 | 1.3 | |
| Panel Power (Watts) |
0.44 | 0.44 | 0.44 | 0.44 | |
| Touch Screen | None | None | Projected Capacitive (PCAP) | Projected Capacitive (PCAP) | |
| Project Capacitive<br />(PCAP) Interface | n/a | n/a | USB | I2C | |
| Note | Please contact Solar Technologies to discuss Touch Screen options. | ||||
10" Products |
PQ3Qi-01 |
PQ101WX01 |
|
 |
|
||
| Diagonal | 10.1" | 10.1" | |
| LCM Interface<br />System | LVDS | LVDS | |
| Luminance cd/m2 | 165 | 200 | |
| >Display Resolution | 1024x600xRGB 3027x600(bcklt off) |
1280x800xRGB 3840x800 (bcklt off) |
|
| Mode | Transflective | Transflective | |
| Active Area (mm) | 222.72 x 125.28 | 216.96 x 135.6 | |
| Brightness (nits) |
Darkroom | 165 | 200 |
| Office Lighting |
235 | 250 | |
| Outside, Sunlight | >1000 | >1000 | |
| Color Saturation | 40% | 45% | |
| Color in Sunlight? | No | Yes | |
| Hemispheric<br/>Reflectance | 27% | 20% | |
| Diffuse Reflectance | 50% | 40% | |
| Backlight Full Power (Watts) |
1.73 | 1.7 | |
| Panel Power (Watts) |
0.43 | 0.4 | |
| Touch Screen | None | None | |
| Project Capacitive<br />(PCAP) Interface | n/a | n/a | |
| Note | Please contact Solar Technologies to discuss Touch Screen options. | ||
